Science targets table

M20Applies to the
Mars 2020 ANMERApplies to the
MER ANMSLApplies to the
MSL AN

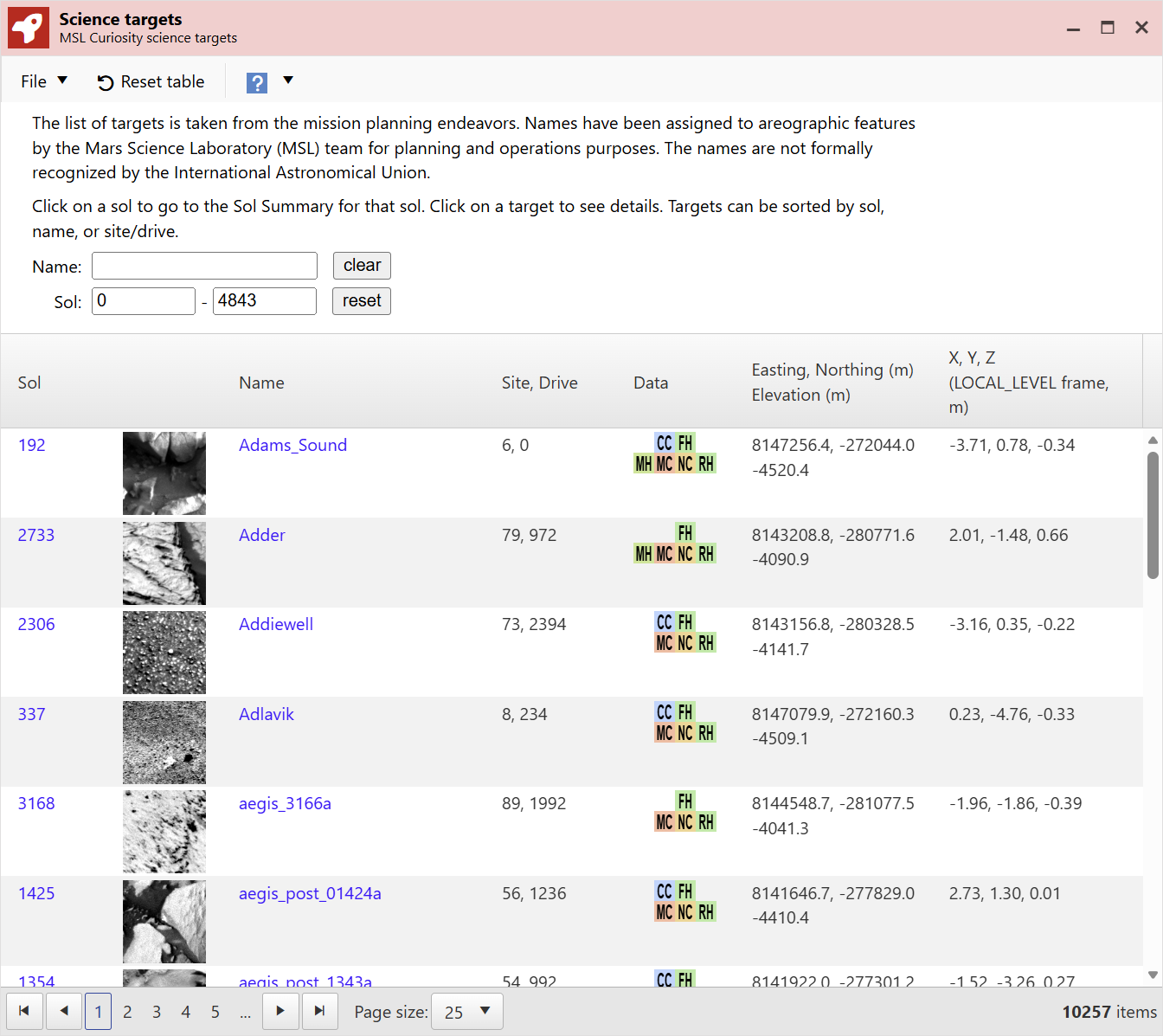

The Mission summaries include a table of science targets taken from the mission planning endeavors. Names have been assigned to areographic features by the M20 Perseverance, MSL Curiosity, and MER Spirit and Opportunity rover teams for planning and operations purposes. The names are not formally recognized by the International Astronomical Union. An example table from MSL is shown here:

What's in the table

mission specific

m20

The science targets table for Perseverance rover includes these columns:

  • Sol - the sol on which the target was defined within the science team planning tool. Clicking on a sol will open the Sol summary table to that sol.
  • A thumbnail image centered on the target. The image used is the one on which the target was defined by the mission science team.
  • Target - the target name used in the science team planning tool. Alternative names may be used in science publications. Clicking on the target name will open a window with target details.
  • Location - given as site and drive, and as easting, northing, and elevation in meters.
  • Data - reference to instruments that collected data related to the target, where known.
msl

The science targets table for Curiosity rover includes these columns:

  • Sol - the sol on which the target was defined within the science team planning tool. Clicking on a sol will open the Sol summary table to that sol.
  • A thumbnail image centered on the target. The image used is the one on which the target was defined by the mission science team.
  • Target - the target name used in the science team planning tool. CliAlternative names may be used in science publications. cking on the target name will open a window with target details.
  • Location - given as easting, northing, and elevation, and in local X, Y, Z coordinates. All values are in meters.
  • Data - reference to instruments that collected data related to the target, where known.
MER

The contact science targets table for Opportunity and Spirit rovers includes these columns:

  • Sol - the first sol during which data about the target were obtained by one of the APXS, Mössbauer, Rock Abrasion Tool, or Microscopic Imager instruments. Clicking on a sol will open the Sol summary table to that sol.
  • A thumbnail image centered on the target.
  • Target - the target name, including broader feature names as well. Clicking on the target name will open a window with target details. Because names were not formally sanctioned by the science team, alternative names may be used in science publications.
  • Type - a classification of the type of target, one of rock, scuff, soil, trench, or heat shield.
  • Data - an indication of the presence of observational data related to the target. Only these instruments are represented in this column: APXS, Mössbauer, Rock Abrasion Tool, and Microscopic Image.
  • Site - the location of the rover when the target was defined.
  • Notes - any additional information about a target noted by the science team.



Filtering and sorting the table

You can restrict the targets table listing by filtering on target name or sol using the controls above the table. Additionally, you can sort the table rows by sol, name, or site/drive by clicking on the appropriate column name.

To return the table to its original state, you can undo your sorting and filtering options, or simply click the "Reset table" button in the toolbar at the top of the window.
