Robotic Arm Camera (RAC)

See also Camera Overview

See also Imaging Product Naming

The RAC is a RA-mounted camera with a spectral bandpass from approximately 450 nm (CCD cutoff) to 700 nm (short pass filter). It will primarily be used to plan trench digs performed by RA-mounted instruments and acquire image data of targets of interest for science analysis.

RAC optics characteristics useful in the analysis of EDR and RDR products are described in Table 1 below:

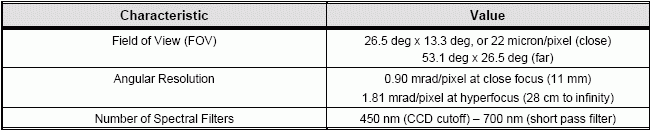

Table 1. RAC Optics Characteristics

The spectral bandwidths for the LEDs in the RAC are described in Table 2 below:

Table 2. RAC Bandpasses

Source: Camera EDR/RDR SIS
